The bromination of fumaric acid happens in steps. Bromine is an electrophile and goes after the double bond. The reaction makes a bromonium ion in the middle. Bromide adds to the intermediate from the opposite side. This makes a meso product. Scientists see color changes and check products to prove each step.
Key Takeaways
- Bromination of fumaric acid has three steps. First, bromine attacks the double bond. Next, a bromonium ion forms. Then, bromide adds from the other side. This makes a meso product.
- Fumaric acid has a trans shape. This keeps the molecule stiff and flat. Bromination always follows anti addition. This puts bromine atoms on opposite sides.
- The bromonium ion blocks one side of the molecule. This makes the bromide ion attack from the other side. The reaction is stereospecific because of this.
- Fumaric acid and maleic acid have different shapes. They react differently with bromine. Fumaric acid makes a meso product. Maleic acid makes a racemic mixture. This happens because of neighboring group participation.
- Scientists check the bromination mechanism in many ways. They look for color changes and solid formation. They also check melting points and product purity. These results match what they expect.
Fundamental Principles and Key Concepts of Bromination Reactions
Bromination is a type of electrophilic addition reaction. In these reactions, an electrophile attacks a molecule with a double bond. The double bond has pi electrons that pull in the electrophile. The alkene acts as a nucleophile because it has extra electrons. When the electrophile attacks, an intermediate forms. How stable this intermediate is changes how fast the reaction goes.
Electrophilic addition follows some rules. Markovnikov’s rule helps us guess where the electrophile will go in unsymmetrical alkenes. This rule says the electrophile adds to the carbon with more hydrogens. This makes regioselective products. The reaction ends when a nucleophile attacks the intermediate and joins the molecule.
Bromination of alkenes has some special things. Bromine is the electrophile in this reaction. When bromine meets the double bond, it makes a bromonium ion. This intermediate is not the same as the carbocation in other reactions. The bromonium ion blocks one side of the molecule. The nucleophile, usually a bromide ion, attacks from the other side. This makes anti addition, so the two bromine atoms go on opposite sides. Bromination does not use Markovnikov’s rule because both carbons in the double bond get bromine.
The table below shows how bromination is different from other electrophilic addition reactions:
| Reaction Type | Mechanism Type | Stereochemistry | Regioselectivity | Key Intermediate | Notes on Reactivity and Outcome |
|---|---|---|---|---|---|
| Bromination | Stepwise | Stereospecific (anti) | Not regioselective | Bromonium ion | Forms bromonium ion, anti addition, stereospecific, no carbocation intermediate |
| Hydrohalogenation | Stepwise | Not stereospecific | Regioselective (Markovnikov) | Carbocation intermediate | Stepwise, regioselective, no stereospecificity |
| Hydration | Stepwise | Not stereospecific | Regioselective (Markovnikov) | Carbocation intermediate | Similar to hydrohalogenation, regioselective, no stereospecificity |
| Epoxidation | Concerted | Stereospecific (syn) | Not regioselective | Epoxide intermediate | Concerted syn addition, stereospecific |
| Dihydroxylation | Concerted | Stereospecific (syn) | Not regioselective | Osmate ester intermediate | Concerted syn addition, stereospecific |
Bromination is special because it always gives anti addition products. The bromonium ion intermediate stops rearrangement and makes the reaction stereospecific. This makes bromination helpful for learning about reaction mechanisms in organic chemistry.
Detailed Structural Features and Chemical Properties of Fumaric Acid
Trans Configuration and Its Influence on the Chemical Behavior
Fumaric acid has a special shape. It is a dicarboxylic acid with the formula HO₂CCH=CHCO₂H. The two carboxyl groups are on different sides of the double bond. This is called the trans or E configuration. Maleic acid is different because its carboxyl groups are on the same side. That is called the cis or Z configuration.
The trans shape gives fumaric acid some special properties. Fumaric acid melts at 287 °C, which is much higher than maleic acid’s melting point of 135 °C. Fumaric acid also does not dissolve well in water. Scientists use X-ray crystallography to see that maleic acid can make intramolecular hydrogen bonds. Fumaric acid cannot do this because its carboxyl groups are too far apart. This difference in structure explains why fumaric acid and maleic acid act differently in reactions and in nature.
The trans shape of fumaric acid makes the molecule stiff. This stiffness changes how other molecules, like bromine, can react with it.
Chemical Reactivity and Factors Influencing the Bromination
Fumaric acid reacts with bromine in an electrophilic addition. The double bond in fumaric acid pulls in bromine molecules. When bromine gets close, it makes a bromonium ion. This makes the bromide ion attack from the other side, causing anti addition. The trans shape of fumaric acid makes anti addition even stronger. The carboxyl groups on opposite sides keep the molecule flat and stiff, so bromine adds to different sides of the double bond.
Many things affect how fumaric acid reacts with bromine:
- Molecular rigidity: The trans shape keeps the molecule stiff and controls how atoms get close.
- Electron distribution: The carboxyl groups change where electrons are, which affects how bromine attacks.
- No intramolecular hydrogen bonding: Fumaric acid does not have internal hydrogen bonds, so it stays very reactive.
The special shape of fumaric acid makes sure bromination always uses the anti addition pathway. This gives a product with bromine atoms on opposite sides of the old double bond.
Mechanism of Fumaric Acid Bromination
The Initial Electrophilic Attack on Fumaric Acid by Bromine
Bromination starts when bromine gets close to the double bond. The double bond has pi electrons that pull in bromine. These electrons move toward bromine and break the bromine apart. One bromine atom sticks to the double bond. The other bromine becomes a bromide ion. This first step is called the electrophilic attack.

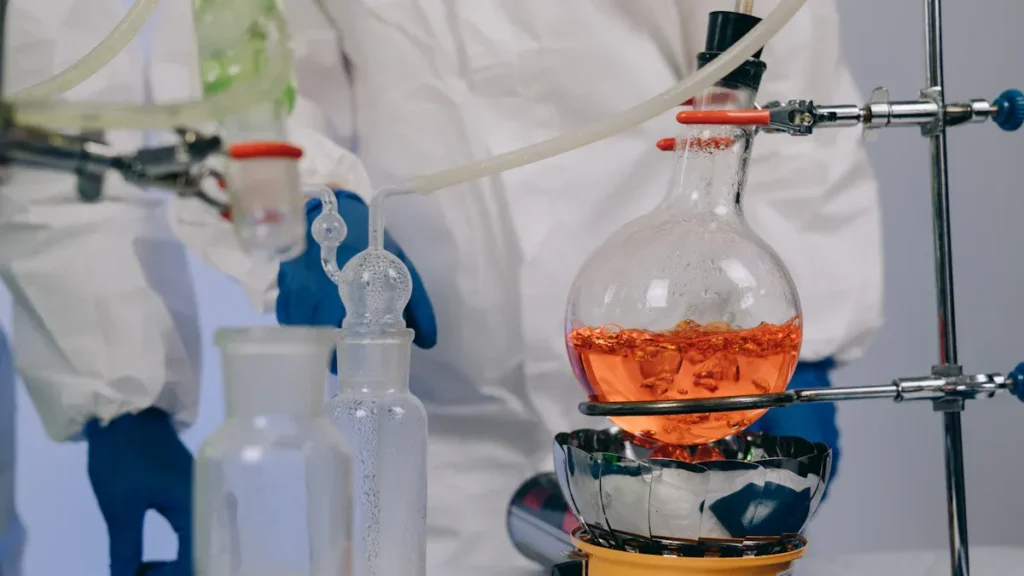

Scientists watch this happen in the lab. They add bromine to fumaric acid and stir it. The color changes from reddish-brown to lighter as the reaction goes on. After a while, a solid forms in the mixture. This solid is the product of the reaction. Researchers collect the solid and check its melting point. The melting point matches what they expect for meso dibromide. This proves the reaction works as planned. These results show that bromine attacks the double bond first.
Formation and Role of the Bromonium Ion Intermediate in the Mechanism
After the first step, a special intermediate forms. The bromine that joins the double bond makes a three-membered ring with two carbons. This ring is called a bromonium ion. The bromonium ion has a positive charge and reacts easily.
The shape of the bromonium ion matters a lot. The bromine bridges both carbons, making a tight ring. Fumaric acid’s trans shape keeps carboxyl groups far apart. This stops the carboxyl groups from helping in the reaction. So, neighboring group participation does not happen here. Maleic acid is different because its carboxyl groups can help the intermediate.
The bromonium ion explains why anti addition always happens. The ring blocks one side, so the next step must come from the other side.
Scientists have more proof for the bromonium ion. Kinetic studies show a kinetic isotope effect in similar reactions. This means making the bromonium ion is a key step. UV-spectroscopy finds charge-transfer complexes between bromine and alkenes. This supports the idea of the bromonium ion. Even though these tests use similar molecules, they help prove the same intermediate forms in fumaric acid bromination.
The Anti Addition Step in the Bromination of Fumaric Acid
Next, the bromide ion does its job. The bromide ion attacks the bromonium ion from the side away from the bromine bridge. This attack opens the three-membered ring. The two bromine atoms end up on opposite sides of the old double bond. This is called anti addition.
Anti addition is important because it shapes the final product. In fumaric acid, anti addition makes a meso compound. This compound has two bromine atoms on opposite sides. It is symmetrical and not optically active.
- Anti addition in bromination is not like syn addition in other reactions, such as hydrogenation.
- In syn addition, both atoms go to the same side of the double bond.
- In anti addition, like in fumaric acid bromination, the atoms go to opposite sides.
The anti addition mechanism matches what scientists see in the lab. The product always has the right melting point and symmetry. This proves the reaction uses anti addition through the bromonium ion.
Fumaric vs. Maleic Acid: Bromination Mechanism and Stereochemistry
Scientists like to look at fumaric acid and maleic acid together. These two acids look a lot alike, but they act differently when they react with bromine. Both have a double bond and two carboxyl groups. The biggest difference is how these groups sit around the double bond.
Structural Comparison:
- Fumaric acid has carboxyl groups on opposite sides. This is called the trans configuration.
- Maleic acid has carboxyl groups on the same side. This is called the cis configuration.
The shape of each acid changes how it reacts with bromine. The trans shape in fumaric acid keeps the molecule straight and stiff. The cis shape in maleic acid makes the molecule bend and brings the carboxyl groups close together.
Mechanism Differences:
| Feature | Fumaric Acid (Trans) | Maleic Acid (Cis) |
|---|---|---|
| Neighboring Group Participation | No | Yes |
| Bromonium Ion Stability | Stable, no extra help | Less stable, carboxyl group helps |
| Addition Type | Anti addition | Anti addition |
| Product Type | Meso compound | Racemic mixture |
| Stereochemistry Outcome | Not optically active | Optically active |
Both acids make a bromonium ion when they react with bromine. In maleic acid, the carboxyl group that is close can help open the bromonium ion ring. This is called neighboring group participation. The help from the carboxyl group changes the reaction and makes a racemic mixture. This means the product has two mirror-image forms, so it is optically active.
Fumaric acid does not have neighboring group participation. Its carboxyl groups are far apart. The bromide ion attacks from the other side of the bromonium ion. This anti addition makes a meso compound. The product is symmetrical and does not turn plane-polarized light.
The way the atoms are arranged at the start changes the stereochemistry. The trans shape in fumaric acid gives one product that is not optically active. The cis shape in maleic acid gives two products that are optically active.
Key Points to Remember:
- Fumaric acid and maleic acid both react with bromine in similar steps, but their shapes change what happens at the end.
- Maleic acid uses neighboring group participation, but fumaric acid does not.
- Bromination of fumaric acid makes a meso product. Bromination of maleic acid makes a racemic mixture.
Students can see from this that small changes in structure can make big changes in chemical reactions.
Experimental Evidence for the Bromination Mechanism
Observation of Color Change During the Bromination Reaction
Scientists see a big color change when bromine reacts with fumaric acid. At first, the solution looks reddish-brown because of the bromine. As the reaction goes on, the color gets lighter and lighter. This means bromine is being used up in the reaction. The fading color shows that bromine is adding to the double bond. When the color disappears, it proves the reaction is happening as it should.
Observation of Precipitate Formation and Measurement of Melting Point During Bromination
A white solid appears in the mixture during the reaction. This solid is the product made by bromination. Scientists collect and dry this solid. They check its melting point after drying it. The melting point is the same as the known meso dibromide. This match is strong proof that the right product forms. Seeing the solid and checking its melting point both support the reaction steps.
Analysis of the Yield and Purity of the Brominated Fumaric Acid Product
Scientists want to know how much product they get and how pure it is. The table below shows common results for brominating fumaric acid:
| Method | Starting Material | Yield (%) | Purity (%) |
|---|---|---|---|
| Bromination of Fumaric Acid | Fumaric Acid | ~97.6 | 90-98 |
Researchers use different ways to test how pure the product is. High Performance Liquid Chromatography with Mass Spectrometry (HPLC-MS) finds the product by looking for a special bromine pattern. Thin Layer Chromatography (TLC) checks for extra spots that show if there are impurities. Colorimetric tests look for metals like iron. Scientists also use titration with sodium hydroxide and phenolphthalein to see how much fumaric acid is left. These tests show the product is pure and has the right chemical structure.
Watching the reaction and testing the product gives strong proof for the bromination mechanism and shows what the final product is.
The bromination of fumaric acid happens in three main steps. First, there is an electrophilic attack. Next, a bromonium ion forms. Then, anti addition takes place. This makes a meso product. Scientists check the product yield and melting point. These match what they expect from the reaction. The shape of the molecule decides the stereochemistry. This is important in organic chemistry. Other alkene reactions show similar results. Geometric isomerism and reaction conditions help decide what products form.
